3-axis machining machine CNC-Advantagefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Machined material
- for aluminum
Description

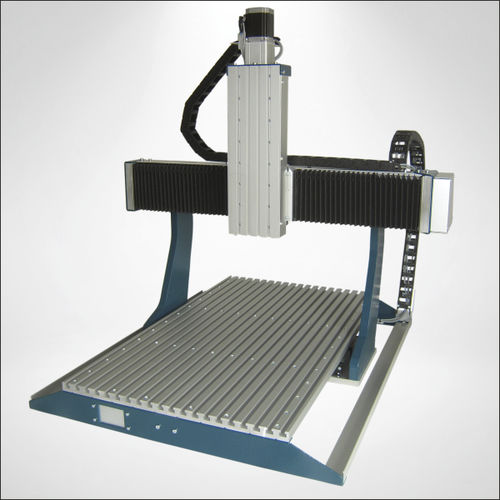

CNC-Advantage
Flat table CNC machine with wide working range
Working range X/Y/Z - 500x500x250mm
Mounting plate, T-groove panel, machined surface, X/Y - 500x840mm
Linear steel shaft guides (16mm), linear guides slides (clearance free)
Ball screw spindles (16mm), ball bearing screws with plastic sealing as dirt wiper
5-axis manufactured aluminum casting (x-axis), high angular accuracy
Stepper motor drives , motor cable mounted in cable chain
Alternative with stepper motor drives (closed loop) or servo motor drives
