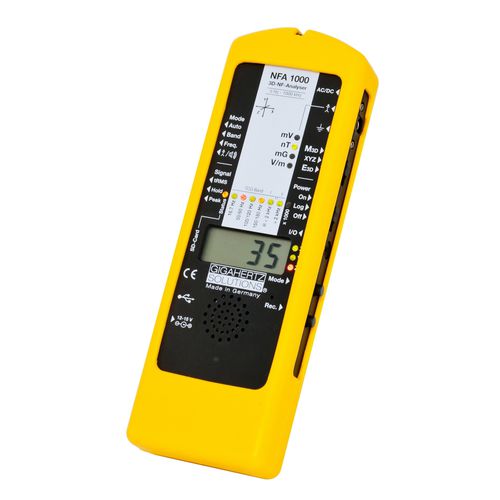

Electromagnetic field measuring instrument NFA1000

digitalfor buildingportable

The NFA1000 is the top of the NFA line, the ultimate tool for dedicated building biologists. With a fraction of the usual amount of time required, all LF sleeping area measurements can be performed compliant with the SBM regulations, and it also opens up completely new insights for the mitigation of "dirty power". The intuitive NFAsoft evaluation software is included. Frequency range: 5 Hz to 1000 KHz (compensated) Also includes modern power adapter radiation reducible to 400 KHz for TCO measurements Description The NFA1000 supports EMF professionals with dedicated innovative features ■ THREE-dimensional potential-free measurement of the electric field - without the necessity of an external cubicle sensor (thanks to our patents DE102008045360 and DE102007025911). ■ The potential free measurement of a sleeping area at 9 individual spots is optimally supported by the firmware of the NFA1000 allowing it to be fully completed in less than a minute. With a mouseclick, NFAsoft supplies the frequency and axis specific visualisation of the measurement. ■ A compact 3D magnetic field sensor is integrated – as in all NFAs. ■ Electric field measurement versus ground potential is possible with an integrated sensor or with the optionally available TCO conformed probe TCO3. ■ The integrated voice recorder makes a meaningful measurement even more efficient. Furthermore all common unique features of the NFA series are implemented: ■ Parallel to the true 3D value of the magnetic field in the entire frequency range, the three axes of the field, railway and mains current as well as natural and artificial harmonics ("dirty power") are recorded separately.
