Unidirectional weighbridge / metal
BPBSM GIROPES

Characteristics

  • Options:

    unidirectional, metal

Description

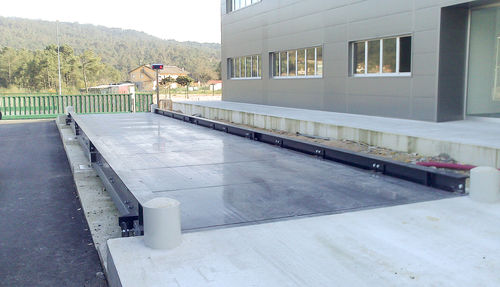

BPBSM is a metal weighbridge scale with a bearing area of 3 m in width for the weighing of vehicles which are authorized to circulate on road.
Its installation is on-ground, so its use is UNIDIRECTIONAL.
Platform height: 310 mm.
The longitudinal beams which form the scale outstand on the modules so that they are used as guides to orientate the lorry on the scale.
The series BPBSM are weighbridge scales with a capacity of 60.000 kg and are built with the following dimensions: 14x3 m, 16x3 m y 18x3 m.

BPBSM + CV + RP
The module BPBSM can be installed on-ground with cubicles and metal access ramps to save time and money during the building of the civil work.
The cubicles are the answer to install the scales on compact enough grounds to save the building of civil work
The metal ramps can be installed at the same moment of the installation of the scale allowing in this way, to start the weighing at the same moment that the scale is assembled.
