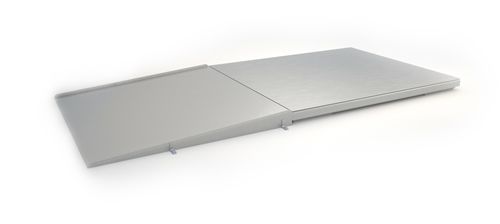

Low-profile platform scale / with separate indicator
B6C GIROPES

Characteristics

  • Type:

    low-profile platform

  • Display type:

    with separate indicator

  • Weight range:

    Min.: 300 kg (661.39 lb)

    Max.: 3000 kg (6613.87 lb)

Description

Weighing platform with beam load cells, ball bearing and load cups.
The structure with double frame turns the maintenance into the simplest one.

Dimensions from 800x800 to 2000x1500 mm.
Capacities from 300 kg to 3000 kg.
Structure made of a cubicle to be fixed on ground, a bridge with U profile and tubular profile and a sheet 5 mm thick.
Available pit-mounted or on-ground.
Height of only 90 mm.
Versions:
Painted structure and sheet
Completely stainless AISI 304
5 m of exit cable in the scale.
