vehicle wheel scale

Add to MyDirectIndustry favorites
vehicle wheel scale vehicle wheel scale - BPRE


  • Options:

    for vehicles

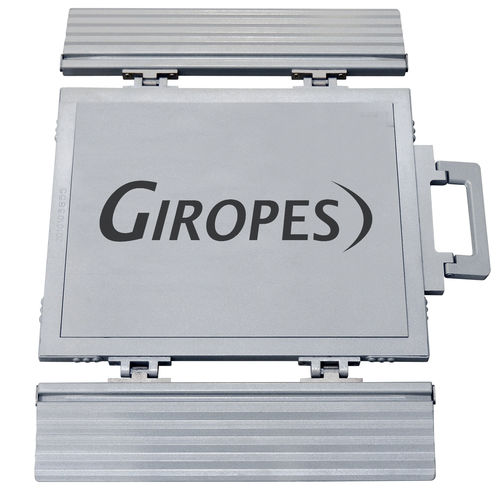

Wheel weighing platforms connectables to the same weight indicator GI511ANST 4R designed for creating weighing stations for small-sized vehicles (cars, vans, small commercial vehicles).
Available also CE-M APPROVED.

- Structure in aluminium.
- IP66 protection.
- Installation on ground or pit (two platforms to weight an axle).
- Maximum nominal capacity for platform:
Version of 2000 kg.
Version of 5000 kg.
- Acceptable maximum overload: 120%.
- Ultimate overload: 150%.
- Operating temperature range: -10 to +50ºC.
- Platform weight: 12 kg.
- Each platform includes a set of 2 aluminium ramps to acces on.
- Each platform is supplied with a transport case with wheels.
- Fast and easy installation. A set of two platforms, with the ramps and the indicator is mounted in less than 10 minuts by a single person.
