Vehicle weighbridge / concrete / metal
BPTSE GIROPES

Characteristics

  • Options:

    for vehicles, concrete, metal

Description

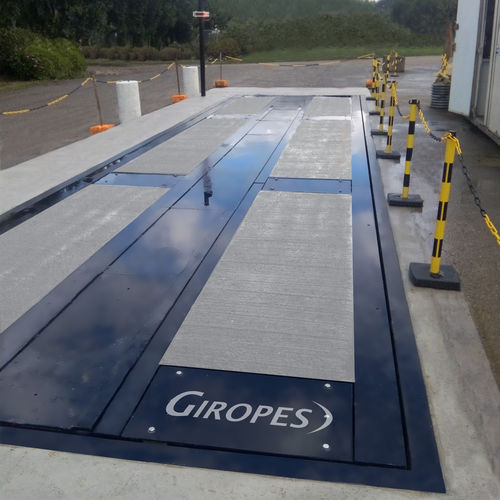

BPTSE consists in a concrete weighbridge scale for the weighing of vehicles which are authorized to circulate on road.
This weighbridge scale can be installed on-ground or in-built. The in-built installation allows the OMNIDIRECTIONAL circulation of the vehicles on the platform. This makes the scale especially attractive for small spaces where it is necessary to work on the platform.
The modules are given in concrete from factory, so that the scale can be assembled and start the weighing, saving the time of waiting of the concrete assembly.
Height of the platform: 330 mm.
It contains a central sheet to facilitate the clearing of the ditch of the platform.
The series BPTSE are weighbridge scales with maximum capacities of 30.000 kg and 60.000 kg depending on the dimensions of these ones. They can go from 6x3 m. to 18x3 m.

BPTSE + CV + RP
For the scale model BPTSE exists the possibility to install it on-ground with cubicles and metal access ramps to save time and money in the building of the civil work.
The cubicles are the solution to install the scales on compact enough grounds to save the building of the civil work.
The metal ramps can be situated at the same moment of the installation of the scale, allowing in this way to start the weighing from the moment that the scale is assembled.
