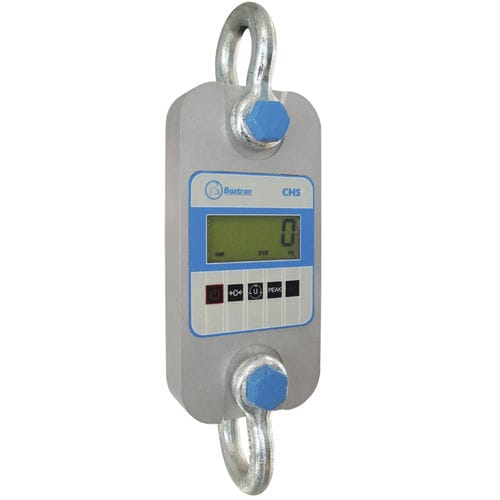

•Crane scale and/or load dynamometer for traction power.
•Provided with a case to facilitate transport.
•Two framework endings:
- For crane scales of 3000 and 5000 kg: aluminium.
- For crane scales of 10000 kg: steel.
•Retro illuminated LCD display with 5 digits of 25 mm.
•Two versions:
- Version CHS M.
The crane scale includes display and keyboard.
The user can user remote control throught the function keys.
Maximum distance of remote control: 15 m.
Power supply of the remote control: 2 batteries type AAA (included).
- Version CHS W.
The crane scale includes display and keyboard.
There is the possibility to use remote control via radio using the functions keys and display to view the weight.
Maximum distance for the appropiate use of the remote control via radio: 50 m, straight line.
Shackles included in CHS3000W and CHS5000W (optional for CHS10000W).
Power supply of the remote control: 4 batteries type AA (included).
•Calibration of the crane scale via remote control.
•Crane scale power supply: 3 batteries type AA (included).
•Low battery alarm.
•Units: kg, lb, N, kN, t.
•According to security guidelines of machines 2006/42/CE.
