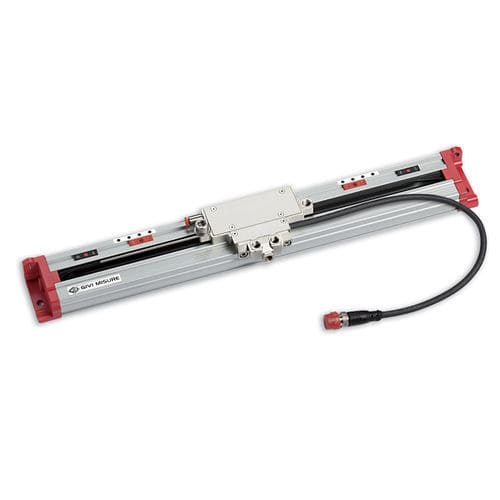

Incremental linear encoder GVS 215 series

magneticsealedIP67

Magnetic incremental scale with pole pitch 2+2 mm. Particularly suitable for applications on synchronized press brakes. Reader head guided by a self-aligned and self-cleaning sliding carriage with spring system. Accuracy grade ± 15 μm. Selectable reference indexes every 10 mm along the entire measuring length, with Zero Magneto Set device. The adjustable cable output and the selectable zero references make the scale SYMMETRIC and applicable to both columns of the press brake. Safety limit switches, positionable at both ends. Sealing lips for the protection of the magnetic band, made of special elastomer resistant to oil and wearing. Various possibilities of application, with double-effect joint or steel wire. An adapter guarantees the compatibility with PBS-HR scale. High accuracy and stability of signals even in case of high speed, strong accelerations and vibrations. Protected against inversion of power supply polarity and short circuits on output ports.
