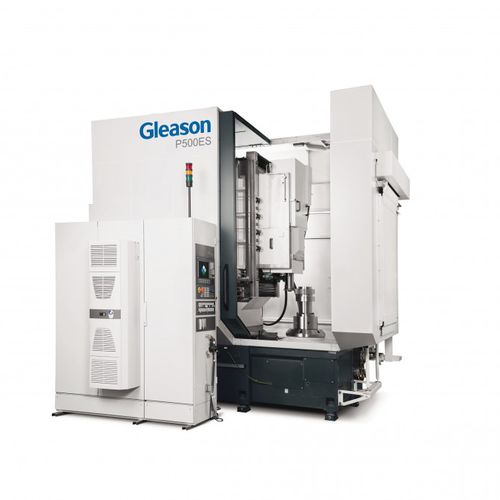

Vertical gear-shaping machine P series

CNC

Gleason’s mid-range series of shaping machines is easily customized to suit individual customer requirements. The medium-sized P Series comes in three model sizes: P500S, P600S and P600/800S. The P Series can be upgraded with the Electronic Shaping Guide Option. Workpiece diameter, max. 800 mm Module, max.12 mm Stroke length, max.250 mm Built to Last The dynamically rigid and thermally stabile machine is complemented by an extremely rigid cutter holding fixture. Higher Accuracies The unique design of the machine structure in combination with its hydrostatic bearings and backlash-free drives ensures more precise movements across the complete speed range. Helical Guide Changed in Little Time The unique design of the hydrostatic spindle guide allows for minimum changeover time between straight and helical guides. For more flexibility choose the Gleason ES Option. More Flexibility – The Revolutionary ES Option Electronic Shaping Technology (ES) allows the operator to change the workpiece helix angle by simply entering the required values in the dialog program. The software calculates all the necessary machine settings for you! Multiple Gears in One Setup Multiple gears can be machined in a single setup by using tandem cutters of different design. Simple Operation Dialog-guided input enables operators to rapidly change from one workpiece to the next. New jobs are entered while the existing job is still in production. Rapid Production with Integrated Automation Choose between automatic loading by ring or gantry with flexible chain magazines, or adapt to your specific automation system.
