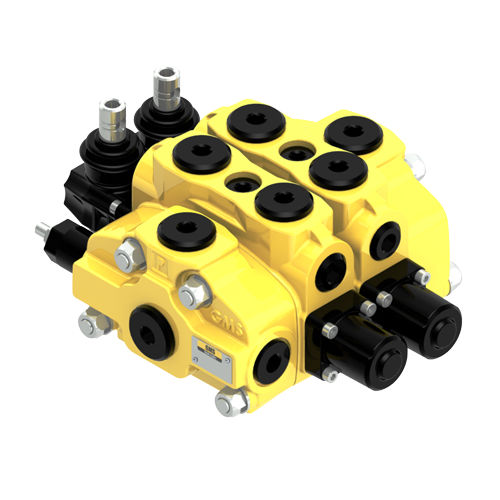

Sectional hydraulic directional control valve 100L GS series
spoolpilot-operated

sectional hydraulic directional control valve
sectional hydraulic directional control valve
sectional hydraulic directional control valve
sectional hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
pilot-operated
Other characteristics
sectional
Operating pressure

315 bar
(4,569 psi)

Flow rate

100 l/min
(26 us gal/min)

Description

Sectional valves stated in other words sectional directional control valves are highly flexible and have various auxiliary valves such as anti-shock, anti-cavitation, electro hydraulic pilot operated unloader, hydraulic pilot unloader etc. Generally sectional valves have check valve for each work section are from 1 to 12 sections with open center, closed center hydraulic circuits. Various sections used together such as series, parallel or tandem circuit valve. Also sectional valves may have intermediate pump and tank sections. WORKING CONDITIONS This catalogue shows technical specifications and diagrams measured with mineral oil of 46 mm2/s – 46cSt viscosity at 40°C temperature. Max. flow: 120 l Back pressure (max.): on outlet port T 25 bar 360 psi Internal leakage A(B)®T Dp=100 bar – 1450 psi fluid and valve at 40°C 3cm3/min. 0.18 in3/min. Hydraulic fluid: Mineral base oil Fluid temperature:with NBR seals from - 20° to 80°C with FPM (VITON) seals from - 20° to 100°C Viscosity: operating range from 15 to 75 mm2/s from 15 to 75 cSt Min.12 mm2/s 12 cSt Max.400 mm2/s 400 cSt Max. level of contamination: 19/16 – ISO 4406 Tie rods tightening torque: (wrench 17) 50 Nm 37 lbft
