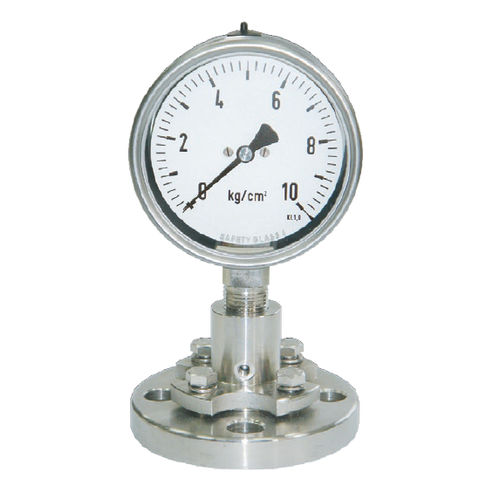

DT122 diaphragm seal is designed to be used in highly viscous process media such as pulp, paper, waste treatment, and plastic Chemical process industries. DT122 is easy to assemble with pressure gauges, pressure switches, and pressure instruments.
Technical Data
Instrument connection: female thread Va to Vi' BSP or N PT
Membrane size: 036, 045, 075 available
Process connection: W to 3" Flange, JIS, ANSI, DI N available
Température limited: -40~+150°C cooling element or capillary line up to 350°C
Pressure range limited:
075 Membrane: -760 mmHg~0, Minimum process flange 2“ x 150#
045 Membrane: Maximum up to 40 kg/cm2
Minimum -1~5 kg/cm2, 0~6 kg/cm2 Minimum process flange %" x 150#
036 Membrane: Maximum up to 40 kg/cm2 Minimum O-IO kg/cm2 Minimum process flange Vi* x 150#
Material: Upper & Lower housing-$S316(standard), others on request Membrane: SS316L (standard); Options- Hastelloy C276, tantalum, and others on request.
