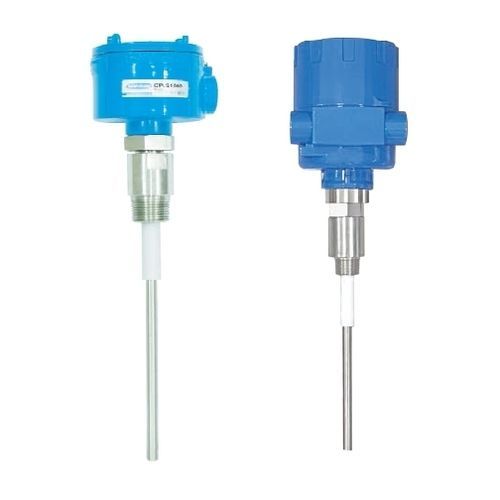

Capacitive level switch CPLS 1000
for liquidsaluminumstainless steel

capacitive level switch
capacitive level switch
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for liquids
Material
stainless steel, aluminum
Mounting
threaded, flange
Other characteristics
IP65, IP66, explosion-proof
Process temperature

Min.: -20 °C
(-4 °F)

Max.: 120 °C
(248 °F)

Description

Proof Housing: IP66 Explosion Proof: EEx d IIC-T6, Il 2 GD No Moving Parts Easy Installation The New-Flow CPLSIOOO is used for measuring process vessel at the spécifie one point for using level alarms or for interlock-ing level control System. The New-Flow CPLSIOOO has the ability to detect and mea-sure both conductive and non-conductive media. CPLSIOOO can be used in many industries for a wide range of applications such as water, oilsr and a variety of corrosive materials. Technical Data Rode Probe: SS316, Hastelloy C276, Ni-200, PFA lining Process Connection: 1" N PT of thread or f lange; 3A" optoin Flange Connection: - 3", or consult to manufacturer Operating Sensibility: 4 pf (adjustable) Power Supply: 110VAC, 220VAC, 24VDC Contact Form: SPDT Contact Rating: NO/NC 10A/5A 120VAC NO/NC 7A/5A 240VAC
