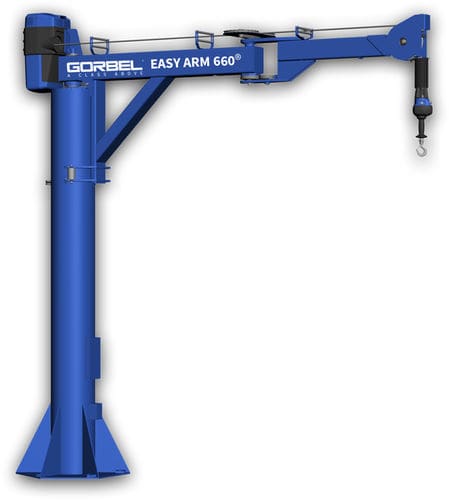

Electric manipulator arm Easy Arm®
with hoistfor liftingloading

electric manipulator arm
electric manipulator arm
electric manipulator arm
electric manipulator arm
electric manipulator arm
electric manipulator arm
electric manipulator arm
Add to favorites
Compare this product


Characteristics

Drive type
electric
Gripping device
with hoist
Applications
for lifting, loading, unloading
Configuration
pillar
Other characteristics
rotary, floor-standing, intelligent
Carrying capacity

Min.: 165 lb
(74.8 kg)

Max.: 330 lb
(149.7 kg)

Maximum lifting speed

3 ft/s
(0.9 m/s)

Rotation

360 °

Description

The Free Standing Easy Arm® uses Gorbel®’s award winning G-Force® technology and integrates it into an articulating jib design for a turn-key plug and play lift assist device. Easy Arm® can be observed in areas such as high cycle pick and place applications, loading and unloading machine parts and working around machines or maneuvering parts around obstructions. Here are some key features of our Free Standing Easy Arm: • Free standing or portable mounting solutions that will allow you to move this lift assist device anywhere in your facility  • Fully Integrated with Q2 and IQ2 G-Force® Intelligent Lifting Devices • For smaller work areas that require 14’ spans or less   • Easy installation: Unit ships assembled and ready to be installed  • Requires no special foundation for the 165 and 330. The 660 can be a foundationless installation up to 9' 6" • Easy relocation: The Easy Arm® is simply bolted to the floor • Cost effective turnkey solution Read through articles on the benefits of utilizing Intelligent Assist Devices: • How to Leverage the Power of Intelligent Assist Devices to Achieve Operational Efficiency
