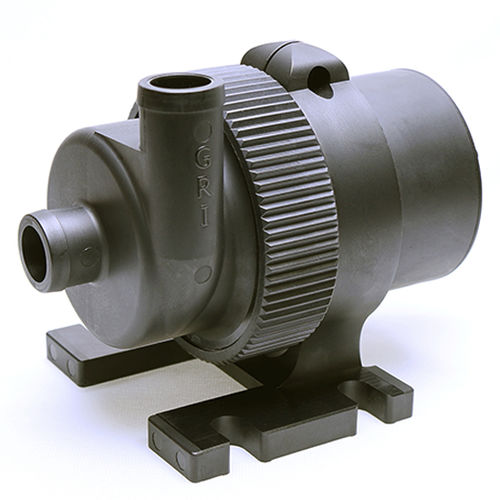

Water pump INTG7 series

for chemicalsfor food productswith brushless DC motor

Designed for the circulation and transfer of fluids, GRI’s Integrity Series Pumps offer a flexible and robust solution to OEM applications. Constructed with a proprietary blend of PPS, the INTG7 is compatible with a wide variety of fluids. By manufacturing the motors and the majority of the pump’s components in-house, GRI has the flexibility to precisely configure an Integrity Series pump to meet an OEM’s specific flow and pressure requirements. Equipped with an integrated brushless DC variable speed motor, with voltage ranges from 12-24, 36 and 48 volts, these sealless, motor integrated centrifugal pumps incorporate the components into a compact, lightweight design. Fewer parts promote long life, quiet operation, and low power consumption. The Integrity Series 7, with its small footprint and weighing in at approximately 3.5 pounds, offers a powerful performance with a flow range from 2 gallons per minute (or 7.50 liters) to approximately 22.0 gallons per minute (or 83.0 liters). Available OEM options include a variety of suction and discharge port configurations and control options to best fit an OEMs application. The supply voltage can directly control the pump performance. Performance can also be controlled by an available analog 0-5 volt DC input as well as a PWM digital signal input. Additionally, a tachometer option is available to measure pump speed. For advanced and high-tech applications requiring customized control, CAN-bus is also available.
