Water pump 3910
for hydrocarbonselectriccentrifugal

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, for hydrocarbons
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
process, chemical process
Other characteristics
suction, single-stage, in-line, vertical
Flow

1,360 m³/h
(48,027.94674 ft³/h)

Pressure

42 bar
(609.158 psi)

Head

230 m
(754'07" )

Fluid temperature

430 °C
(806 °F)

Description

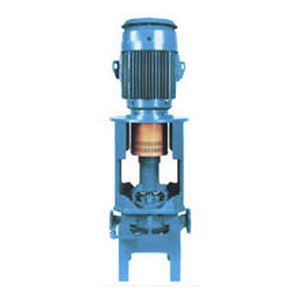

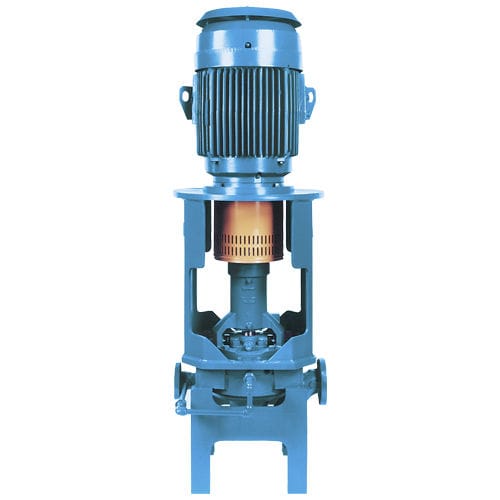

Goulds Model 3910 API 610 (OH3) vertical in-line pump provides benefits of low installation costs and space savings...without compromising reliability, maintainability, safety or hydraulic performance. Rotating Element Shaft and bearings are same as used with Goulds Model 3700 horizontal process pump. Proven design preferred for toughest services. Engineered In-Line Suction Design The 3910 suction design is the result of extensive model and full-scale testing. NPSH requirements are minimized. Design assures streamlined, even flow into impeller eye; reduces losses encountered in conventional suction designs. Labyrinth Heat Flinger Absorbs and dissipates heat conducted through the shaft. Heat flinger also circulates air between liquid end and power end to reduce heat build-up. Multiple Impellers Available with all pump sizes. Accommodates specific user operating requirements for trouble-free operation. Optional Pump Supports Provide additional support and stability of entire unit during installation and maintenance.
