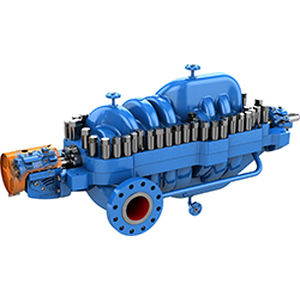

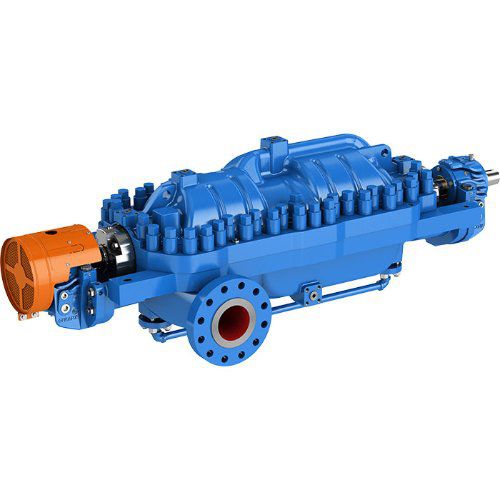

The Goulds 3600 i-FRAME API 610 (BB3) is an advanced design axially split multi-stage process pump. Engineered features make it an extremely reliable, high performance pump well suited to a wide range of services in oil production, refining, pipeline, power generation, descaling and mine dewatering services.
Design Features
Axially Split Casing - For extreme ease of maintenance.
Dual Volute Design - Balances hydraulic radial thrust at each stage for extended seal/bearing life.
Integral Compact Crossovers - Minimize flow losses, maximize efficiency.
Heavy Duty Single Row Bolting - Prevents distortion and chance of interstage leakage.
Precision Impellers - Individually balanced for smooth operation.
Opposed Impeller Arrangement - Provides permanent axial hydraulic balance.
API-610/ISO 13709 Compliance is Available
Low Vibration / Smooth Performance
Individual impellers and complete rotor assembly dynamically balanced.
Shrink fit of impellers to shaft assures precise balancing of rotating assembly.
Precision cast impellers have equal volumes between vanes for reduced pressure pulsations.
