Analyzer / carbon dioxide / panel-mounted / for the beverage industry / for BTEX detection
GOW-MAC Instrument Co.
for the beverage industry
for BTEX detection
This instrument can be used for the selective measurement of BTEX (benzene, toluene, ethyl benzene, o-xylene, m-xylene, and p-xylene) in CO2. It meets all the ISBT method 13 criteria's too.
The product is sturdy, rugged with robust design. It has very low maintenance and a turn-key system.
Some of the salient features of this product are:
It has Auto Calibration and Auto Calibration Validation.
It comes with both Process Mode and Manual Mode.
Has dual As Found and As Left function.
Has six- 4-20mA output.
Photo Ionization Detector is present (PID) with detection limits for benzene being < 5 ppb.
It can be connected to a PC-Based system for control and data logging. Has two modes of monitoring namely, Batch or Stream monitoring.
This instrument can be operated at ambient temperatures. Though it has adjustable temperatures for the oven. Detector Temperature is set by the factory.
This machine can be used to test almost against virtually all of the potential alcohol and oxygenate impurities that could be present.

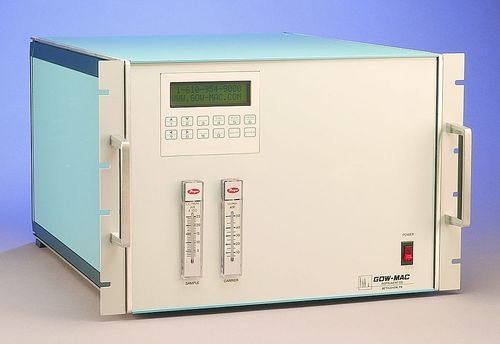

Benzene captured by the instrument is show on its front panel.
