Machining motor spindle SX-EAV
AC

machining motor spindle
machining motor spindle
Add to favorites
Compare this product


Characteristics

Function
machining
Other characteristics
AC
Rotational speed

Min.: 5,000 rpm
(31,415.93 rad.min-1)

Max.: 26,000 rpm
(163,362.82 rad.min-1)

Diameter

Min.: 6 mm
(0.2 in)

Max.: 8 mm
(0.3 in)

Description

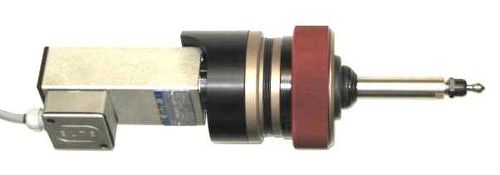

engraflexx type SX-EAV Complete unit consisting of a laterally deflecting spindle with electric, steplessly adjustable driving motor. It is mainly used in robots and special machinery for deburring and finishing of parts on which dimensional and positional differences have to be compensated automatically. Tool specifications: Integrated, lateral deflection function of the spindle up to 15 mm maximum constant deflection force even with larger spindle deflection uniform, regular machining, indpendent from dimensonal differences on the workpieces Lateral deflection force of the spindle steplessly adjustable via knurled sleeve settings readable on an engraved scale Collect chuck as tool holder for working tools standard diameter of 6 mm (8 mm maximum) other diameters or special adapters available on request Tools are available with the following driving motors: 900W collector motor (8’000-26’000 rpm) with integrated electronic rotation speed regulation cost-efficient complete unit requiring sporadic maintenance 350W high frequency spindle (5’000-24’000 rpm) complete, including frequency converter control in a separate casing maintenance-free unit for continuous operation and rather light applications 750W high frequency spindle (5’000-24’000 rpm) complete, including frequency converter control in a separate casng maintenance-free unit for continuous operation and rather heavy applications Weights (complete including driving unit) incl. collector motor: 3.6 kgs incl. 350W high frequency spindle: 3.8 kgs incl. 750W high frequency spindle: 5.8 kgs
