VERSATILE - 1 shoe bends ½” to 2” EMT, IMC and Rigid conduit
ACCURATE - Absolute encoder stops bending at precise angles
RELIABLE - Solid state electronics rated for 1,000,000+ bends.
Simple switching between vertical and horizontal bending configurations
Digital pendant sets angle and monitors process
Solid state system eliminates arcing and prevents damage from temporary power loss
Specifications
Centerline Bend Radius - 4.25" (108 MM) - 9" (228.6MM) (EMT, IMC Rigid) For 1/2" - 2" Shoe Size
Voltage Rating - 120 VAC
Conduit Size - 1/2" to 2" Rigid, EMT, & IMC
Includes - 1/2'' - 2'' Rigid / EMT / IMC Shoe, Roller Support and Digital Pendant
Standard - C/US UL Listed

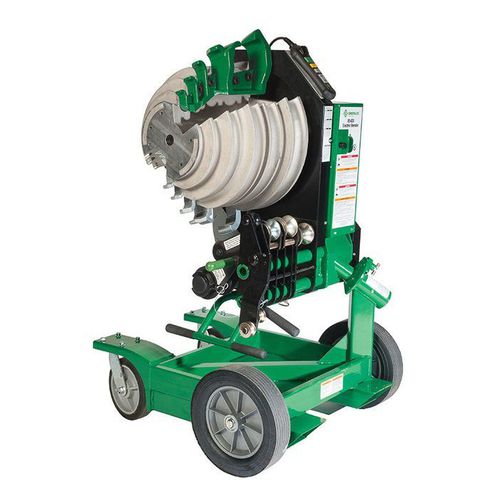

Type - Electric Conduit Bender
Accessory - 02840 Shoe Group, 1/2'' to 2'' PVC Coated Rigid (854DX)
Conduit Type - Rigid, EMT, IMC (PVC coated Rigid w/)
Bend Radius - 4.25'' (108 MM) - 9'' (228.6MM) (EMT, IMC Rigid) For 1/2'' - 2'' Shoe Size
Application - Conduit bending
Capacity - 1/2'' - 2'' Rigid, IMC, EMT
Amperage Rating - 20 AMP GFCI Protected Receptacle
