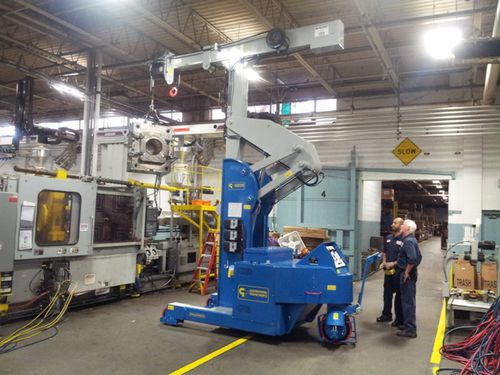

Mobile crane MINIDREL 60S

boomtelescopicfolding

Hook capacity 6.000 Kg Min.height hook elevation 2,400 mm Max height hook elevation 4,800 mm Possibility of extension in height up to (optional) 5,200 mm Standard telescopic extension 1,350 mm Capacity at max. standard telescopic extension 6.000 Kg Possibility of telescopic extension up to (optional) 3,600 mm Capacity at max. telescopic extension (point 7) 1,900 Kg Wheelbase 2,500 mm Dimensions - length 2,960 mm Dimensions - width 1,430 mm Dimensions - height 2.850 / 2.950 / 3.050 /.3.150 mm Variable movement speed from 0 to 60 m / min Slope that can be overcome when empty 8% Slope that can be overcome at full load 3% Front wheels 2 x Ø300 x 140 mm Rear wheels 1 x Ø 450 x 180 mm Wheels material Polyurethane Drive wheel drive REAR WHEEL Total weight 7,100 Kg Electric motor power 5.0 KW / 24 cc. 420 Ah / 24 V traction battery Battery charger 110/240 V -50/60 Hz GEL battery
