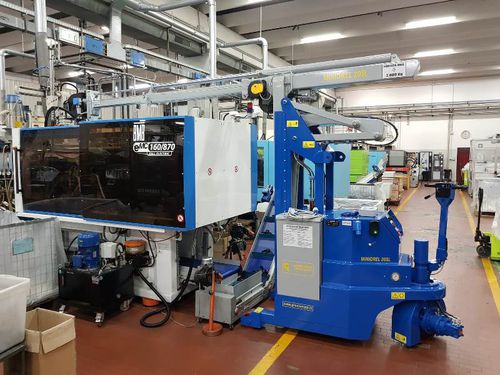

Mobile crane MINIDREL 20S

swing-armtelescopicarticulated

Maximum load capacity 2.000 Kg Standard min. hook’s height from the ground 1.800 mm Standard max. hook’s height from the ground 3.600 mm Possibility to extend height up to (option) Standard max. telescopic extension 1.500 mm Capacity at standard max. telescopic extension 700 Kg Possibility to extend telecopic extension up to - 5.000 mm Capacity at max.telescopic extension (point 7) 160 kg - – Wheelbase 1.250 mm Dimensions- lenght 1.610 mm Dimensions- width 950 mm Dimensions- height 2.320 mm Adjustable speed from 0 to 60 m/min Max. surmountable slope ( unloaded) 8% Max. surmountable slope ( loaded ) 3% Front wheels 2 x Ø 160 x 80 mm Rear driving wheel 1 x Ø 450 x 110 mm Wheels material - Polyurethane Drive - REAR WHEEL Total weight: 3.200 Kg Electric motor power 3,0 KW / 24 cc. Hardened battery (standard) 280 Ah / 24 V Battery charger on board 110 / 240 V -50/60 Hz Gel battery Additional autonomy of battery Proportional control on board of all mouvements Certification to standard 2006/42 CE Made in accordance (not certified) to standard UL508 A Certification (issued by Third Party) to standard UL508 A Drive hydraulic unit - Automatic braking system - Overloading safety system - Pressure safety valves on each movements Safety emergency electric devices Wireless remote control Possibility to do all movements with max. Load
