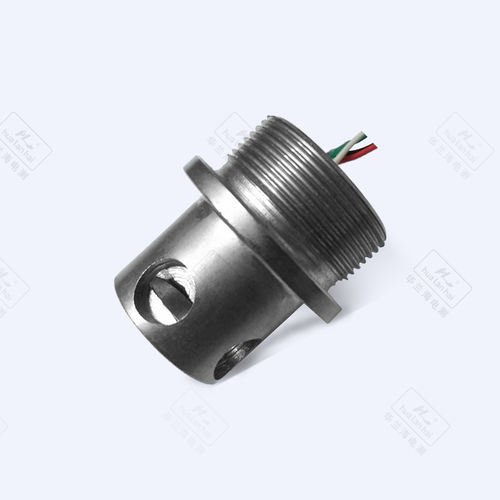

Relative pressure sensor PT303Lstrain gaugeanalog4-wire
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- strain gauge
- Output
- analog, 4-wire
- Mounting
- threaded
- Material
- stainless steel
- Other characteristics
- fast response time
- Pressure range
Max.: 150 MPa
Min.: 0 MPa
- Precision
0.5 %, 1 %
- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
The strain type pressure core adopts 3K high impedance strain gauge and imported stainless steel components. It has the advantages of impact resistance, low power consumption, low temperature resistance and fast response time. It is widely used in various pressure measurement and transmitter assembly.
Mine pressure sensor.
Output Signal
1mV/V ; 2mV/V ; 3mV/V
Excitation Voltage
10(6VDC ~ 12VDC)
Thread Connection
M33*1.5
Long-term stability
-------
Safe Overload
120%
Ultimate Overload
150%
