Spray nozzle GG-W

coolingwashingfor liquids

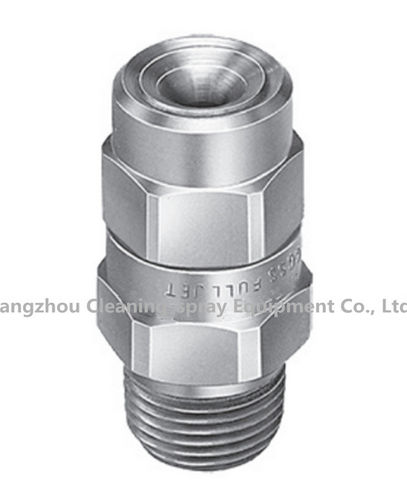

GG-W Wide angle full cone spray nozzle Keliying wide angle full cone jet nozzle features a solid cone-shaped spray pattern with a round impact area and spray angles of 102° to 120° at 10 psi (0.7 bar). They produce a uniform spray of medium to coarse drops across their entire spray area. This yields excellent results in spraying applications requiring complete coverage of an area or zone. This uniform spray distribution results from a unique vane design and exacting internal proportions. Angle type wide angle full cone jet nozzle features a spraying axis 90° from the axis of the nozzle inlet. The angle type design is useful wherever full jet spray nozzle must be installed on an extension over the center of a spray zone or mounted in a side-tapped header. Keliying GG-W full cone jet nozzle features three-piece construction (body/cap/vane) with removable vanes. Model: GG-W full cone jet nozzle Material: stainless steel Spray angle: 86°-120° Operating pressure: 0.3-6 bar Connection:1/8",1/4",3/8" ,1/2" NPT or BSPT(M)
