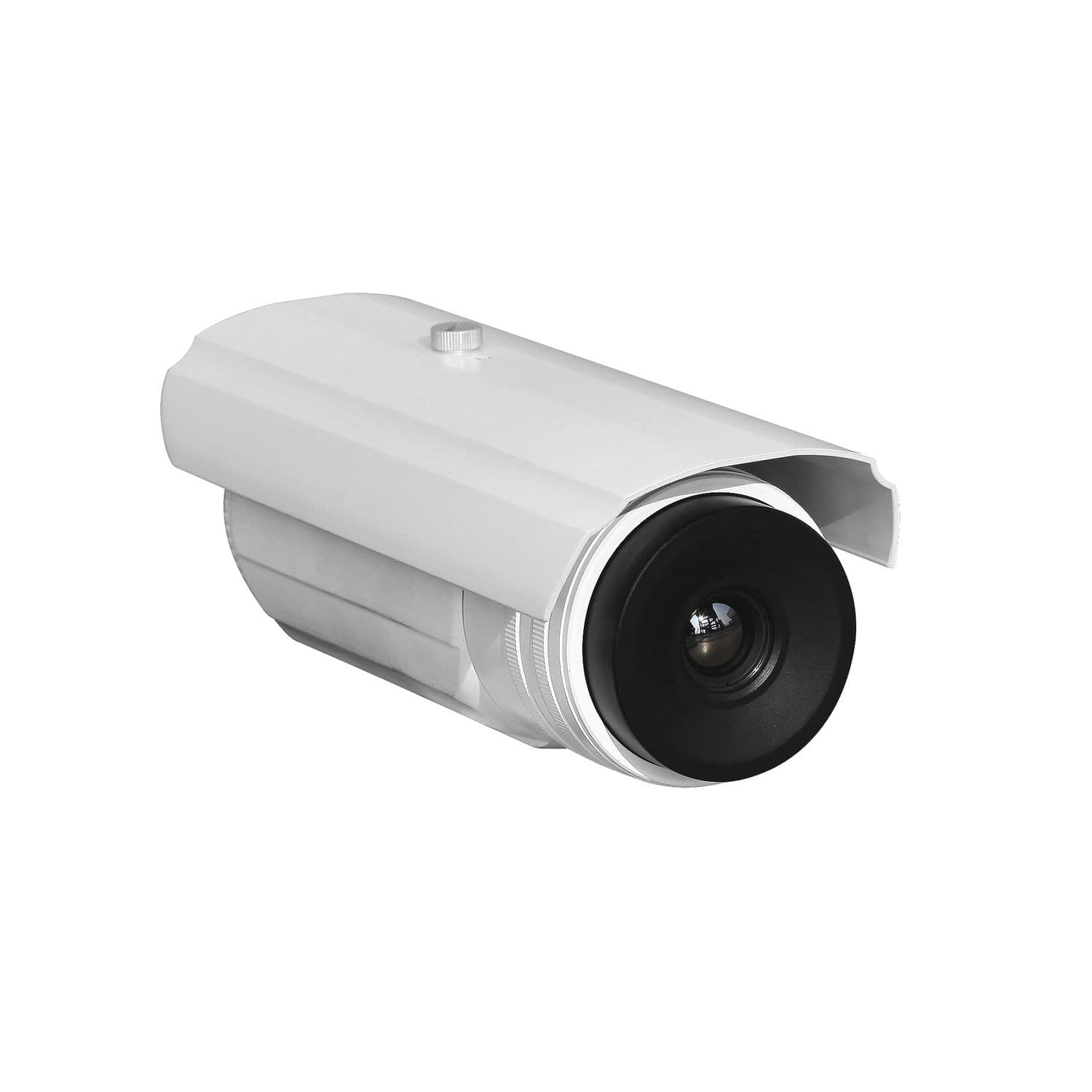

Thermal imager for security applications
JK350-POE Guangzhou SAT Infrared Technology Co., LTD

Compact, light and small surveillance camera.
Power over Ethernet technology, passing electrical power safely, along with data, on Ethernet cabling.
Indoor/outdoor working capability.

Specification:
•Image Performance 　
FOV/Min Focus distance: 65°X51°/50cm
Spatial resolution: 2.95mrad
Detector type: FPA,Uncool Microbolometer
NETD: ≤0.05℃@30°C
Resolution: 384×288
Spectral range: 8~14 µm
Focus: fixed
Digital zoom: 2X
•Visual Image 　
Resolution: N/A
Optical zoom: N/A
•Control System 　
Control mode: RS-485
Contrast/brightness: Auto
•Video Output 　
Viewfinder: N/A
Image storage: N/A
Video output: NTSC/PAL
connector: RJ45
•Power System 　
Power supply: 48V DC by PoE Router
consumption (Normal/heating): 5w
Start-up: ≤20S
•Envinranment Specification
Operating temperature: -35℃～+50℃
Storage temperature: -40℃～+70℃
Humidity: 10% to 95%, non-condensing
Encapsulation: IP66
•Physical Characteristic
Size(mm) 230×93×93
Weight 1.5KG
•Range Performance 　
detection: human 127m
detection: vehicle 390m
Recognition: human 45m
Recognition: vehicle 130m
