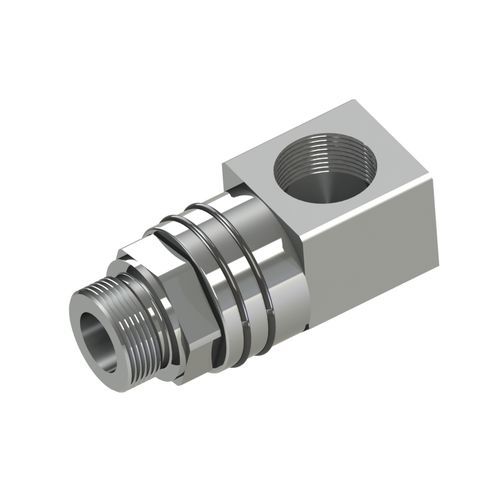

screw-in fitting / 90° angle / hydraulic / swivel
SJK HAAG + ZEISSLER Maschinenelemente GmbH

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in

  • Configuration:

    90° angle

  • Applications:

    hydraulic

  • Other characteristics:

    swivel

  • Diameter:

    Max.: 1.5 in

    Min.: 0.25 in

  • Operating pressure:

    315 bar (4,568.69 psi)

Description

The SJK series comes with steel 42 Cr Mo 4 or stainless steel 1.4571. It has a PTFE compound seal and built-in ball-guiding tracks that are similar to ball bearings. It has swiveling and rotating movements with low speed. Its operating data include a maximum pressure for steel up to 1" for 350bar, steel 1 1/4" with 315bar, stainless steel up to 1" with 160bar, and stainless steel 1 1/4" - 1 1/2" with 100bar.

It can withstand maximum temperature of 225°C and minimum of -50°C. It comes in sizes of 1/4" - 1 1/2".
