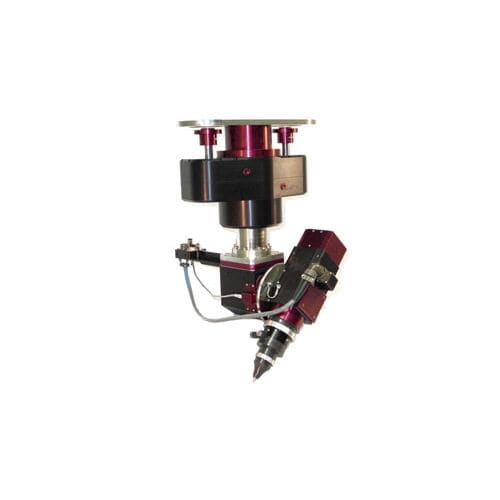

Articulated arm OLW-25

Optical Laser wrist designed for multi-axis gantry laser processing machines, laser robots and custom equipment. For profile/bevel cutting, welding/cladding and drilling applications. Each system is custom assembled as per customer specification. Available in 25mm or 50mm clear apertures for either CO2 or Nd:YAG applications. Dual axis wrists feature two floating mirror mounts in a sealed beam delivery system, collective junction box for electronic and fluid connections and an electrically-interlocked quick-disconnect magnetic coupler designed to accept various process head styles. Internal crash protection breakaway mechanism. Contains proximity sensor position limits on both axis of rotation. Haas part number OLW-25 shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.
