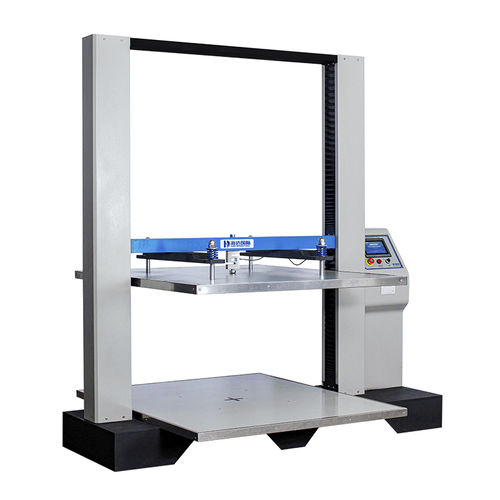

Compression test machine HD-A501-1200
automatic

compression test machine
compression test machine
compression test machine
compression test machine
Add to favorites
Compare this product


Characteristics

Test type
compression
Operating mode
automatic

Description

The usage: Box compression Tester is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer. The main technical parameters Capacity (optional): 2T Unit (switchable): Kg, Lb, N Load Resolution: 1/10,000 Load Accuracy: ≤0.5% Test Space (L×W×H): 1000×1200×1200 mm Speed of Compression: 10 ± 3 mm/min Report Items: Serial number, Peak value, Average value Safety Devices: Overload protection, overvoltage protection & limited position protection device Standard: GB/T 4857.4,JIS-Z0212,TAPPI-804 ,ISO2872,NF H13-001,CNS 2236/3511.
