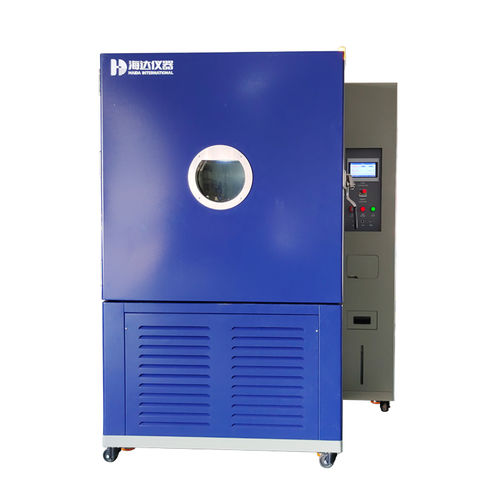

environmental test chamber / altitude / for high temperatures / low-temperature



  • Type:

    environmental, altitude

  • Options and accessories:

    for high temperatures, low-temperature

  • Length:

    1,000 mm

  • Width:

    1,000 mm

  • Depth:

    1,000 mm

  • Temperature:

    Max.: 100 °C (212 °F)

    Min.: -70 °C (-94 °F)


Standard Features:
Internal dimension (W*D*H)1000*1000*1000mm
Temperature range-70~+100℃(no load);-55~+100℃(with load)
Temperature fluctuation±0.5℃
Temperature uniformity±2℃
Ambient Humidity≤85%RH
Cooling speed≥1℃/min in average (with loading 15kg,+85℃~-55℃ )
Heating speed1℃/min in average (with loading,-55℃~+85℃)
Pressure Range101Kpa~1Kpa
Pressure Accuracy±5%
Pressure Control MethodAdjust temperature first, then pump vacuum
Internal chamber materialSteel plate with plastic spray

1.To simulate test environment with various altitude environments .
2. It is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense
3.Application fields: Include Aviation, aerospace, communications, electronics, electrical appliances etc.
4.Test Purpose: to guarantee the maximum quality and reliability while products or material might encounter at various altitude levels.

1.High performance and quiet operation
2.Space-saving designed for flush installation to wall
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5.High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6.Multiple layers of safety device to easy maintenance.
