Parameters:
Glass table size: 330×230mm
Stroke: X,Y: 300×200mm
Net Weight: 260 kg
Travel: Z: Effective space :245mm /Focusing stroke:200mm/Work
distance:95mm
Measuring system: Tolerances:0.0005mm
Measuring accuracy:≤(3+L/200)μm
Video system: Camera: Color 1/3``CCD camera
Optical Magnification:0.7~4.5X
Digital magnification:30~230X
Object view-field:7~1.1mm
Contour and surface illumination: Ring LED and brightness
can be setup
Accessory: 1 set PC with software
Features:

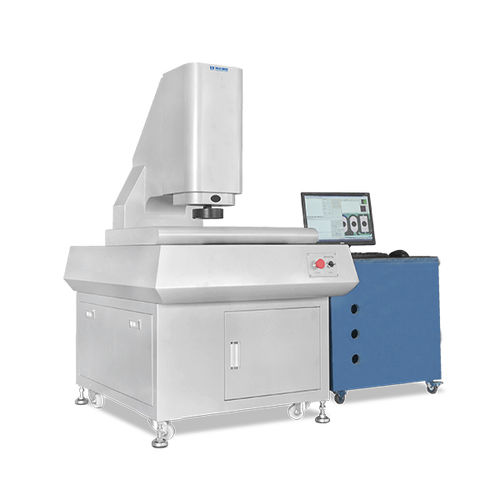

Optical Coordinate Measuring Machine is a precise and effective non-contact optical measuring instrument. It is composed of a series of accessories, such as color CCD Camera & adapter, zoom lens capture card, linear scales, high precision worktable, electronic motor, PC and monitor. The Quick Measuring software of Manual image measuring machine is able to control the brightness of 40-division light source, auto-focus, X, Y and Z-axis auto-movement. TXT, Excel report output immediately, dxf drawing input quickly. The operator can setup auto-program-run in light of different measurement case foe different work pieces, it improve the operator’s working efficiency effectively and reduce the enterprise’s cost of human resource obviously.
