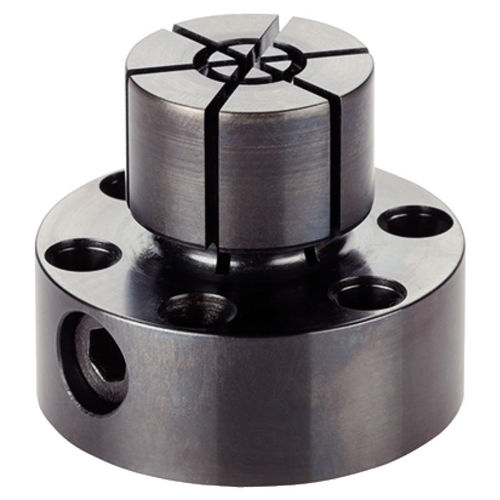

Mechanical clamping element 23340.0125machiningsteelcentering
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- machining
- Other characteristics
- steel, centering, lateral
- Clamping force
20 kN
Description
For clamping and centering of workpieces with internal bore.
Material
Body
Steel, blackened
Clamping screw
Heat-treated steel
Assembly
The centering clamping mandrel can be machined to the required seating diameter (e.g. by turning/milling). It must be noticed that before machining the centering clamping mandrel, it will be expanded approx. 0,1 mm over the clamping diameter. To machine the mandrel, a locking ring will be provided.
Operation
Thanks to the lateral handling it can also be used for blind hole drilling.
Further products
Centering Clamping Mandrels
