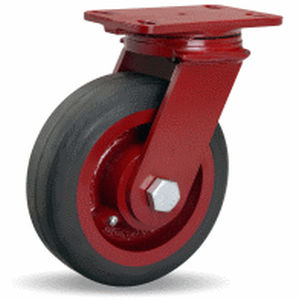

Swivel caster / base plate / heavy-duty / for furniture


  • Type:


  • Mount:

    base plate

  • Other characteristics:

    heavy-duty, for furniture, handling, rubber, plastic, metal

  • Wheel diameter:

    10 in, 8 in, 6 in, 5 in

  • Load capacity:

    Min.: 540 lb (244.94 kg)

    Max.: 2200 lb (997.9 kg)


ForgeMaster Casters
Capacity Range: 540 - 2200 lbs.

Swivel Construction 3/8" thick drop forged steel mounting plate; 5/16" x 2 1/2" plate steel legs robotically welded inside and outside to forged steel horn base.
Kingpin 1" diameter integrally forged with mounting plate guaranteed for life, threaded for 3/4" diameter lock nut.
Main Load Bearing CNC-machined 3 1/4" diameter raceway; 1/2" diameter hardened and polished steel balls.
Secondary Load Bearing 1" precision tapered thrust bearing counteracts radial thrust.
Axle3/4" diameter hex head with lock nut.
Lubrication FittingsBall-check type in swivel assembly and wheel hub.

Hamilton's ForgeMaster™ Casters were designed to match popular industry mounting plate, bolt hole and overall height specifications. However, the precision tapered thrust bearing and guaranteed-for-life integrally forged kingpin design make it superior to the double ball race casters in its class.
