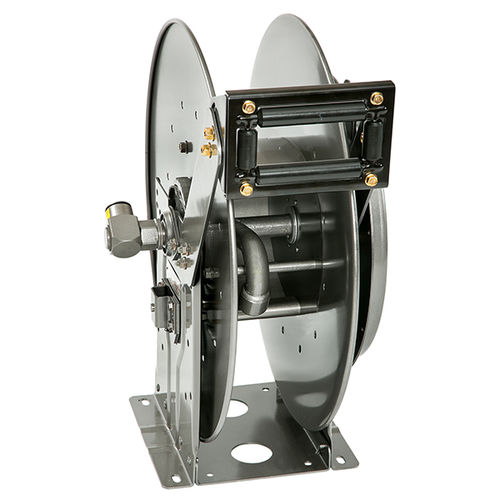

Hose reel N800 series

spring rewindfixedwall-mounted

Spring Rewind Reels To handle 3/4" or 1" I.D. hose Fuel Dispensing / Waste Oil Evacuation / Air / Water - Standard N series has a narrow frame and compact mounting base. - Non-sparking ratchet assembly. - Declutching arbor to prevent damage from reverse winding. - Standard inlet: 90° balanced pressure swivel joint 1" female NPT threads. - Standard outlet: 1" female NPT threads. - Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify. - Temperatures from -40° F to +250° F (-40° C to +121° C). - Consult factory for other pressures and temperatures. - 4-way roller assembly. - SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information. - Constant tension is available consult factory.
