Electric slip ring compact
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Other characteristics
- compact
- Voltage
12 V, 24 V, 120 V, 240 V
- Primary current
2.5 A, 5 A, 17.5 A, 35 A
- Rotational speed
Max.: 12 rpm
(75 rad.min-1)Min.: 1 rpm
(6 rad.min-1)
Description

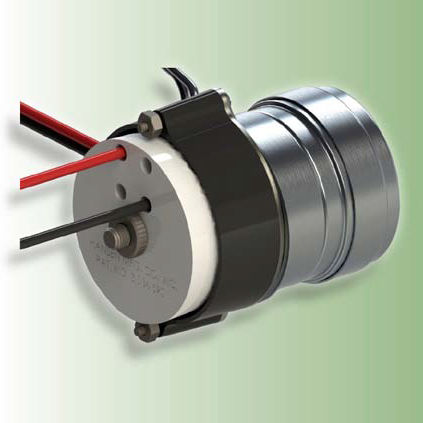

This patented assembly - a Synchron exclusive - combines rotating motion and electrical power in a single, compact 2-wire unit. Available with clockwise or counterclockwise Synchron gear motors or Hansen brush type DC gear motors for use in any position. The slip ring assembly has a special double brush and dual contact to assure continuous transmission of electrical power.
