loss-in-weight system controller
HI 4060 Hardy Process Solutions

Add to MyDirectIndustry favorites

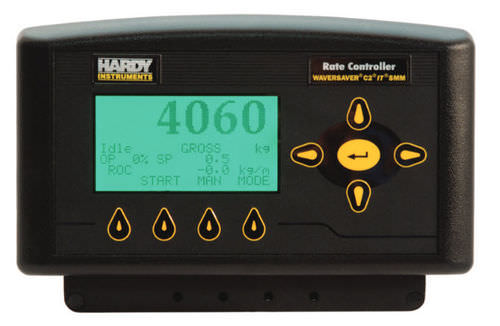

loss-in-weight system controller loss-in-weight system controller - HI 4060


Hardy's HI 4060 is a compact, single-feeder, closed-loop rate controller for use in a variety of applications, including auger, belt and vibratory-based feeders, converting them from volumetric to gravimetric.

After supplying excitation to the load sensors and digitizing the weight signal, the rate controller provides an analog output to control the feeder speed and adjusts this signal based on the required rate at which the feeder is losing weight. The HI 4060 can communicate this information real-time to a PLC or a PC to control the entire process.

The HI 4060 loss-in-weight rate controller features:

Automatic closed loop control: continuously adjusts the feeder to deliver the desired feed rate
True five-point automatic rate calibration: produces high feed accuracy for a wide range of feed rates
Multiple configuration storage: stores hundreds of different system configurations
Automatic feeder refill: starts and stops refilling without interrupting the feeding of material
Convenient manual mode: allows manual speed control, with switch to automatic control at the touch of a button
Various alarms, including rate tolerance and disturbance
Embedded web server for remote access
Communications: optional DeviceNet, EtherNet/IP, Remote I/O, Profibus, Modbus TCP/IP, and Analog
