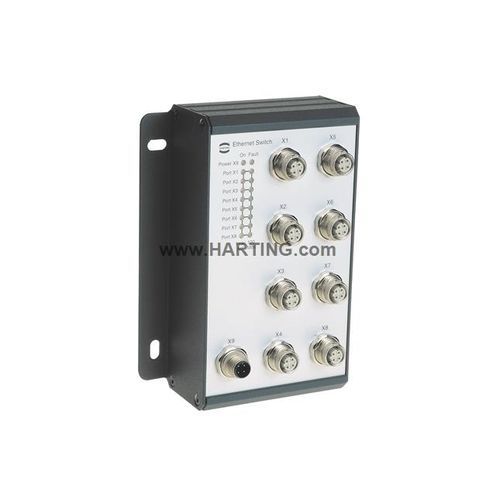

Unmanaged ethernet switch Ha-VIS eCon 4000

10 portswallIP40

Element Industrial Ethernet Switches Specification Unmanaged Type of Ethernet Fast Ethernet Total number of ports 8 Fixing Wall mounting flat Switching technology Store and Forward Frame size 1.632 kB MAC table size 8k Entries Packet buffer size 1 Megabit Non blocking Yes Quality of service Yes Flow control Off Signal contact No Details with coated PCB Pack contents Assembly instructions Nominal voltage 24 V DC 48 V DC Permissible voltage 12 ... 60 V DC Surge protection Yes Operating current <150 mA @ 24 V DC <76 mA @ 48 V DC Supply circuit SELV (Circuit Breaker 10 A) Starting current <42.4 A @ 24 V DC <86.8 A @ 48 V DC Power consumption <3.65 W @ 24 V DC Termination method M12 A-coding Number of contacts 4 Pinout + / - / - / + Reverse polarity proof Yes Operating temperature -40 ... +70 °C Storage temperature -40 ... +85 °C Relative humidity 10 ... 95 % Non-condensing (operation) 10 ... 95 % Non-condensing (storage/transport) Air pressure ≥795 hPa ≈ 2000 m Degree of protection acc. to IEC 60529 IP40 mated condition MTBF ≈ 1544,000 h Material (hood/housing) Aluminium (anodised) Steel sheet (powder-coated) Length 50 mm Width 130 mm Height 166 mm RoHS compliant with exemption ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Yes California Proposition 65 substances Yes
