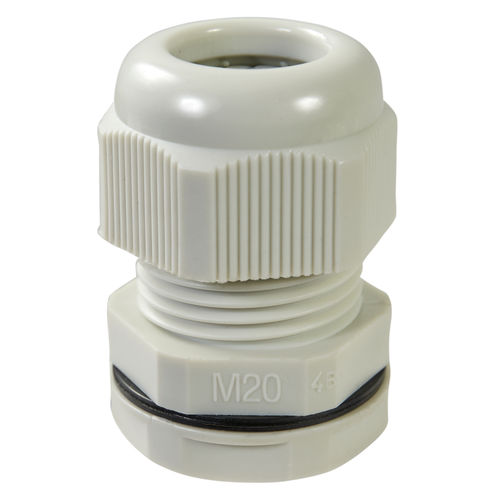

Polyamide cable gland 2500 series
IP68straight

polyamide cable gland
polyamide cable gland
polyamide cable gland
polyamide cable gland
Add to favorites
Compare this product


Characteristics

Material
polyamide
Protection level
IP68
Other characteristics
straight
Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

material: polyamide 6.6, (gland body: PA 6.6, halogen free, seal: TPR, halogen free, washer: PVC), colour: light- grey or black, temperature range: 40°C to + 85°C, vibration protection: integrated anti- twist protection for vibration- firm assembly, fire class: according to UL 94 V2, protection category: IP68, properties: integrated strain relief; easy to install, RoHS- compliant, completely assembled as shown
