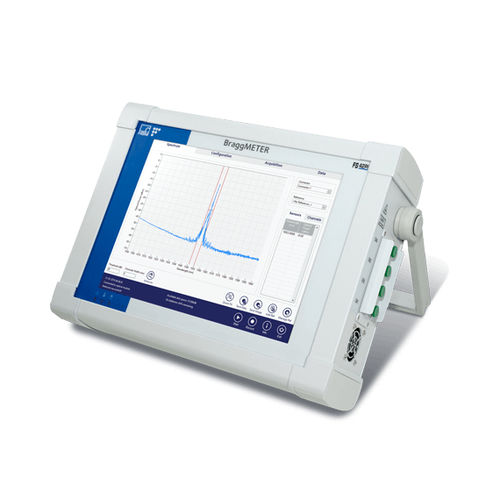

Optical sensor interrogator with touch screen BraggMETER

fieldfor laboratoriesportable

FBG Measurements on the Move A brand new revision of the FS42PI Portable Interrogator for on site measurements or short-term tests. FS42PI Portable BraggMETER: Compact Optical Interrogator with Embedded Software It is the most effective way of supporting the installation of Fiber Bragg Grating (FBG) sensors onin the field or for short measurement tasks onin laboratory applications. The FS42PI Portable BraggMETER runscan run on batteries or be plugged to an external power source and. It is supplied with an easily removable bag for protection and transport. This is a unique and unparalleled solution that allows accurate FBG measurements of FBG onin the field without the need for an external power supply or PC and that. It is also easy to carry. Its dedicated embedded software and touch screentouchscreen interface provide an easy and effective way to control the unit without any furtherother devices. It is also possible to control the unit remotely and stream data in real time via the Ethernet port using SCPI commands. Enhanced Features - Consistent Quality: What's New? Smart Peak Detection (SPD) Improved measurement stability and resolution (resolution <0.5pm; stability 1pm) Increased battery life (2x the autonomy ensuring 5 h of operation with a single battery charge) Reduced weight (total weight of around 6 kg corresponding to, making for a 20% reduction) Increased temperature operating range (0 ºC [32 ºF] to 50 ºC [122 ºF] meaning a 40% wider temperature range) More user-friendly software, the BraggMONITOR PI Removable connector panel for cleaning and maintenance Carrying bag with zipper for easier handling Windows10 IoT operating system
