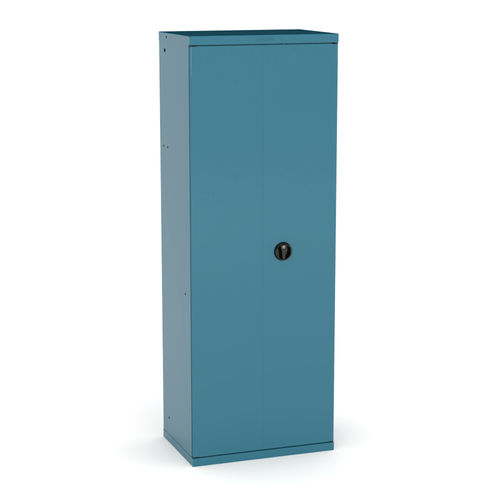

storage cabinet / floor-mounted / double-door / single-door
158 series HECO



  • Type:


  • Mounting:


  • Construction:

    double-door, single-door

  • Material:


  • Width:

    700 mm

  • Height:

    1,980 mm

  • Depth:

    260 mm, 490 mm


Door cabinet with shelves and/or drawers, spout bins, ISO 40 or ISO 50 cone shelf, perforated panel . High-quality 2-point lock. Structure in 1mm thick sheet metal, all welded by resistance painted in hammered blue colour, dried in the oven before degreasing and phosphating. 1mm thick sheet metal shelves that support a distributed weight of 100Kg. Shelves adjustable every 25mm. 1mm thick sheet metal drawers that support a distributed weight of 50Kg. Telescopic slides of 50Kg. (full opening). Sheet metal doors 0.6mm thick. The shape of the side edges of doors folded from the same sheet gives it rigidity without the need to weld reinforcements. The rounded doors allow an opening of more than 180º.
