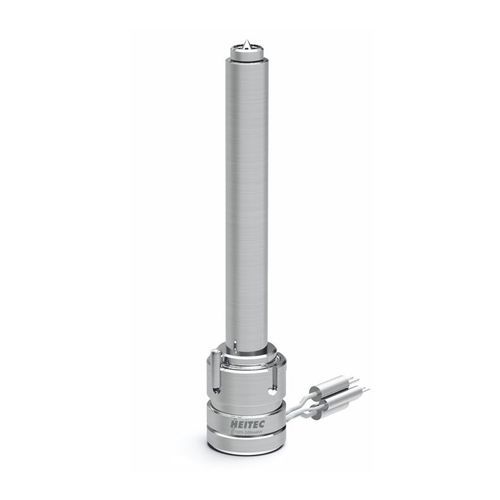

Hot runner nozzle SLIM-LINE

for melt

Requires little space Quick colour changes Ideally suited to the injection moulding of cosmetics items as well as caps and closures. In combination with our cooling core, support for internal gating for internal article contours starting at 16mm Heat conductive tips with metallic or screw-type connections Short cycle times thanks to low heat input into the mould Suitable for all types of plastic with up to 30% filler content Built-in diameter 11–15mm Flow channel diameter 3–4mm Nozzle lengths 18.5–240mm Shot weights 0.1–20g
