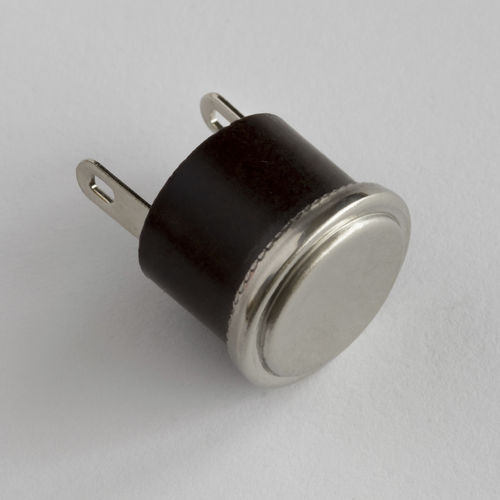

preset thermostat / bimetallic / miniature
M 16 HEITO

{{requestButtons}}

Characteristics

  • Type:

    preset, bimetallic

  • Other characteristics:

    miniature

  • Temperature:

    Min.: -40 °C (-40 °F)

    Max.: 200 °C (392 °F)

Description

The Thermostat Series M16 has a temperature range of -40° to + 180°C; maximum operating temperature is + 200°C. The current rating is 6 A and the voltage rating is 220 V. Contact types are type O and F.

The composition of contacts are solid silver, and the voltage-proof configurations within terminations and ground is 4,000 V. The contact resistance is 10-m Ohm, while the connection is terminal. It also exhibits a 2.8-mm clip that can be soldered.
