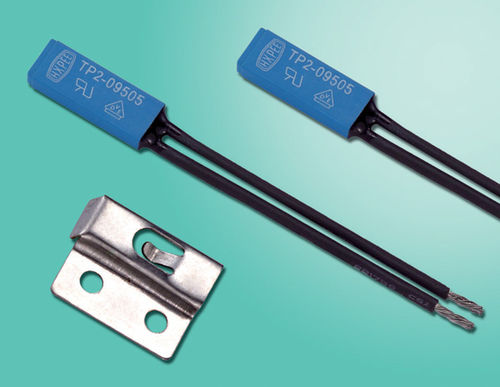

miniature thermal protector / plastic enclosure
TP2 series Hengxin Precision Electrical Equipment

{{requestButtons}}

Characteristics

  • Options:

    miniature, plastic enclosure

Description

APPLICATIONS:
The TP2 Series of Thermal Protector, manufactured by Hengxin Precision Electrical Equipment Co., Ltd., is specifically designed for fractional horsepower motor, fluorescent ballasts, and so on.

SPECIAL FEATURES:
*Miniature size: L18.5*W6.7*H3.6 mm, wire length = 50mm
*With high grade thermoplastic insulated case
*It is configured in a compact design
*With superior heat response and quick response, making the tool generate more efficiently.

TECHNICAL PARAMETERS:
*Rated voltage: AC 250V / 125V (50/60Hz)
*Rated current: 6A /12A
*Rated open temperature range: 45~140℃, in steps of 5℃

*Contact type: Normally Closed & Normally Open

*It is with plastic housing and epoxy sealing.

*Authentication certificate: UL, VDE
