thermal protector
TP3 series Hengxin Precision Electrical Equipment

Description

APPLICATIONS:

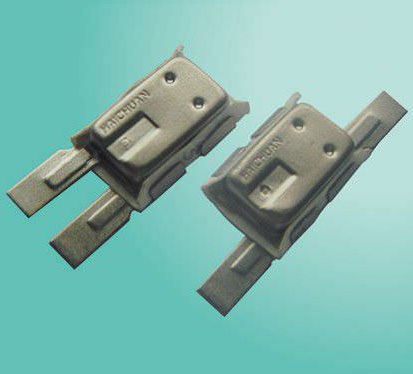

The TP3 series thermal protector is manufactured by HXPEE, and is a DC motor protector with metal housing, that is usually called as 5AP.

*It is actuated by current passing into it and by the heat received from the ambient temperature.

*The body dimension is Miniature: L16.7*W9.3*H3.7 mm, one terminal: L6.1*W2.8*H0.3 mm.


SPECIAL FEATURES:
The unit has compact design which makes it long service life with reliability and more features.
There is available configurations in a variety of standard terminal that permit the easiest mounting and handling. It has a high level of bimetallic which assures that it can withstand the current of normal circuit.

TECHNICAL PARAMETERS:
*25 amps/15 volts DC, 15amps/30 volts DC
*Available temperature from 50℃ to 180℃
*Tolerance Code +/-5℃,+/-8℃
*Trip off current range: 1~25A
*Time check at T-ambient 25℃ 4 to 10 seconds
