thermal protector

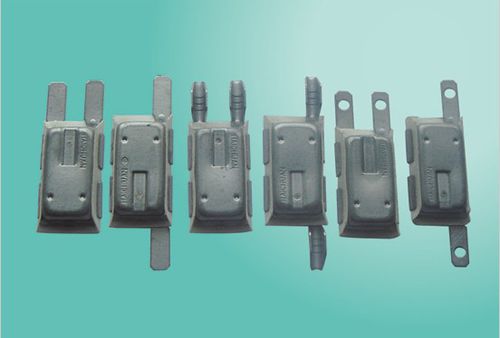

TP4 series Hengxin Precision Electrical Equipment

Description

APPLICATIONS:
The TP4 series from Hengxin Precision Electrical Equipment Co., Ltd., is a thermal protector with metal casing, that can be mainly used for window lift motors, skylight motor, aerial motor, front and rear wiper motors and touching off of door lock.

SPECIAL FEATURES:
It has a compact design, reliable and can withstand long term use. For easy mounting and handling, there are various standard terminal configurations available. The motor is protected against overheating, due to the precise tripping time.

TECHNICAL PARAMETERS:
*30 amps/15 volts DC
*15 amps/30 volts DC
*25 amps/250 volts AC
*45 amps/125 volts AC

Its technical parameters as below:
*Temperature from 30℃ to 180℃
*Tolerance Code +/-5℃, +/-8℃
*Trip off current range:1~45A
*Time check at T-ambient 25℃, 4 to 10 seconds
