bimetallic thermostat / preset
TP1 Hengxin Precision Electrical Equipment

Add to MyDirectIndustry favorites
bimetallic thermostat / preset bimetallic thermostat / preset - TP1
{{requestButtons}}

Characteristics

  • Type:

    bimetallic, preset

  • Temperature:

    Max.: 160 °C (320 °F)

    Min.: 60 °C (140 °F)

Description

APPLICATIONS:

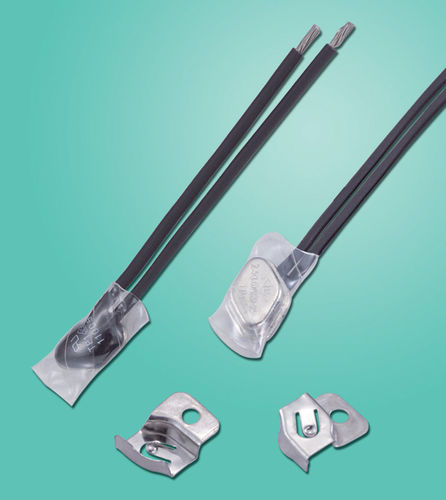

This TP1 Series thermostat is a bimetallic thermostat, applying to water boilers, hot air dryers, washer electrical machinery, coffee machine, liquid pumps, ballast, air conditioner electrical machinery, illumination lamp and lanterns, the automobile electrical machinery and similar household electrical appliances for temperature control and overheat protector.

TECHNICAL PARAMETERS:
*Rated voltage: 50/60HZ, 250V, AC
*Nominal current: 2.5 (1.6) A /10 (6.3) A , COSФ =1.0 (0.6)
*Rated opening temperature range: +60 ℃ ~+160 ℃, take 5 ℃ as a grade
*Resetting temperature range: lower than the open temperature 30℃±15K

*Authentication certificate: UL, VDE
