preset thermostat / miniature

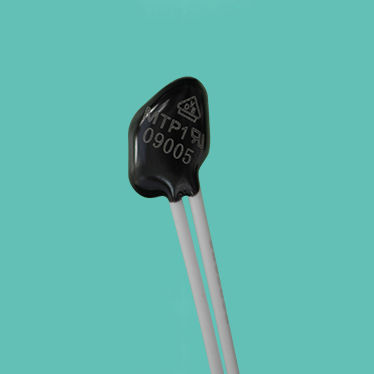

MTP1 Power-off Manual reset series Hengxin Precision Electrical Equipment

{{requestButtons}}

Characteristics

  • Type:

    preset

  • Other characteristics:

    miniature

  • Temperature:

    Min.: 60 °C (140 °F)

    Max.: 160 °C (320 °F)

Description

KEY BENEFITS:
*Manual power-off reset function to obtain utility model patent certificate
*Diamond structure, small volume
*With power-off protection, delay protection function
*More reliable safety performance
*More suitable for abnormal protection of the motor


Using scope:
Mainly used for the overheating and over-current protection of vacuum cleaners, pulverizers, mixers, leather cutters and other power tools, etc.

Product Features:
MTP1 is another high-end thermostat that develops from the TP1 series of thermostat. It adds a heating element to the TP1 series, so that the thermal protector is kept disconnected by the heating characteristic of the PTC after disconnecting. The thermal protector will only cool down and reset after the device is completely powered off. Its power-off protection and delay protection function can safely protect the equipment and personal safety.
