UV curing system / for coating / for drying

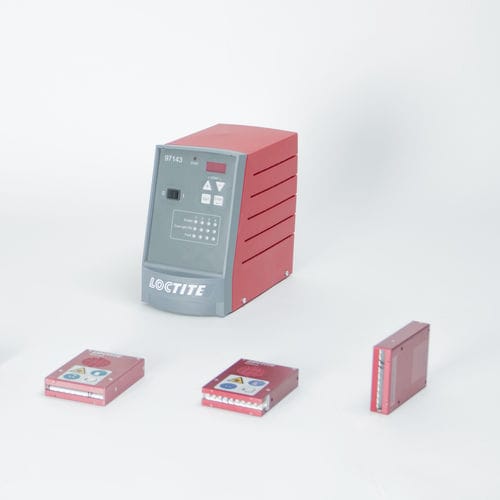

Loctite EQ CL34 LED Line Array System 365/405 nm Henkel LOCTITE



  • Options:


  • Autres caractéristiques:

    for coating, for drying


The CL34 LED Line System is a high intensity cure system specially
designed for curing Loctite® UV and Visible Light Cure adhesives.
The modular configuration consists of an LED head with connection
cable, and controller (ordered separately), and the system is offered
in either 365 or 405 nm wavelengths. Each CL34 head is equipped
with 10 high power LED’s and a cylindrical lens, providing focused
intensity across an area of 80 mm x 5 mm (0.2 inches by 3.15
inches). The heads can also be stacked side by side in a row further
expanding the curing area for maximum flexibility. The expected
lifetime of the LED’s is more than 20.000 hours under normal
operating conditions. The CL34 system is compatible with automatic
production lines. It can be operated via footswitch or PLC and run in
either timer or continuous mode.

Product Properties
● High UV intensity – Up to 1 W/cm2
● LED heads stackable in row
● Expected LED life over 20,000 hours
(30% intensity decay) with proper
● 100% duty cycle
● Instant on/off, no heat up or cool down
● Optimal curing distance: 5-20 mm
● Compact system with integrated air
● Matching LED Line Controller
Loctite® 97143, sold separately
● Temperature monitor of LEDs

- Lasts up to 10 times longer than
traditional arc lamps with negligible
output decay during duty cycle
- 100% of the emitted light is within
the range of the curing spectra of
the adhesive (when compared to
Mercury vapor arc lamps)
- Energy efficient, LEDs produce
little wasted energy
- Each LED head has been
optimized for its specific
wavelength (365 nm, 405 nm)
- Air cooling system, maintenance
