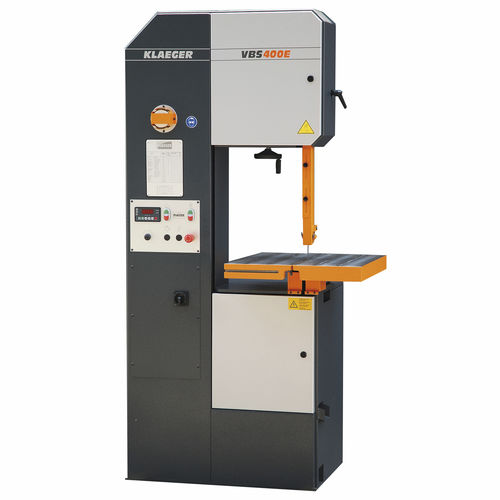

Band saw VBS 400 E

for steelhydraulicvertical

– fixed table (available also with manual table or hydraulic table) – for all-round application with an emphasis on steel (available also with high cutting speed to cut aluminium) KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features - Continuous band speed - Digital speed display - Hardened and grinded sawblade guide - Height-adjustable guide arm - Cutting data table with lots of materials - Integrated LED workstation light Cutting capacity Cutting width - 400 mm Cutting height - 420 mm Technical data Table size - 600 x 600 mm Cutting width - 400 mm Cutting height - 420 mm Sawblade length - 3600 mm Sawblade width - 4 – 20 mm Dimensions H/W/D - 2225 x 1120 x 770 mm Weight - 470kg Colour - anthracite/silver RAL 7016 / RAL 9006 Drive specification - Three-phase motor, controlled electronically Cutting speed - continuous 15-300 m/min. Connected load - 1.5 kW; 3.9 A
