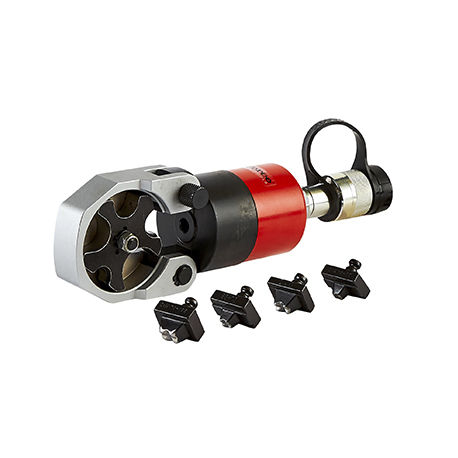

Hydraulic crimping head CH series

The CH hydraulic cable crimping tool range offers 7 models with a choice of open "C" jaw or parallel guide design. All models are supplied complete with standard die sets and a carrying case. Models with 180° rotating head are designed for easy access into confined spaces. Suitable pump units include HP227FPC foot operated pump set which includes elbow fitting, gauge, gauge block, 3 metre hose and male coupler, as shown below. Standard hand operated pumps suitable for use with CH crimper heads can be found on pages 27-29. All models, excluding CH1000, are available as a complete kit, comprising of HP227FPC, MSB1 metal storage case and selected crimping tool with die sets. Choice of 7 models available 180° rotating head for easy fitment Working pressure 700 bar Model CH21 is suitable for crimping non-insulated terminals up to 240 mm² Models CH30, CH32 & CH40 are suitable for crimping connectors up to 400 mm² Models CH63 & CH80 are suitable for crimping connectors up to 630 mm² Model CH1000N is suitable for crimping distribution and transmission lines up to 1000 mm²
