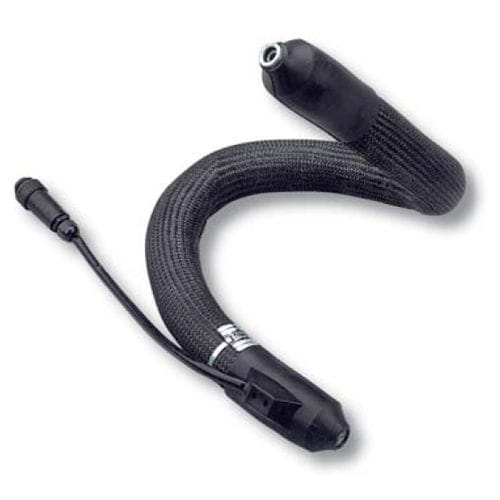

Oil heated hose H 900
for waterfor paintfor chemicals

oil heated hose
oil heated hose
oil heated hose
Add to favorites
Compare this product


Characteristics

Fluid
for oil, for water, for paint, for chemicals
Other characteristics
stainless steel, corrugated
Applications
high-temperature
Operating temperature

250 °C, 350 °C, 450 °C, 550 °C
(482 °F, 662 °F, 842 °F, 1,022 °F)

Description

High temperature heating hose with T5 stainless steel pressure hose Applications: Heating or heat loss free transport of: oil, grease, resin, tar, paint, water, carbon dioxide, plastic, moulding compounds etc. The pressurised hose made of stainless steel, corrugated version, allows very high temperatures up to 550°C. It is also diffusion sealed. Rated voltage - 230 V AC/DC (other voltages up to 500 V) Rated power - Watt/metre, see type codes Pressure hose type - T5 stainless steel, see Pressure hoses Connection fitting - see Fittings Heating - heating conductor, structure according to DIN, glass insulated with PE conductor Thermal insulation - textile glass Outer protective braiding - textile glass black Hose end caps - elastomer with strain relief and kink protection Temperature sensor - Fe-CuNi type J, NiCr-Ni type K, PT100 Connecting cable - 1.5 m Plug connection - round connector Production lengths - from 0.3 to 10 m depending on DIN Protection type - up to IP20 (EN 60529), protection class I Tolerance - ±20°C
