Explosion-proof connection head HBR-IAL4SS

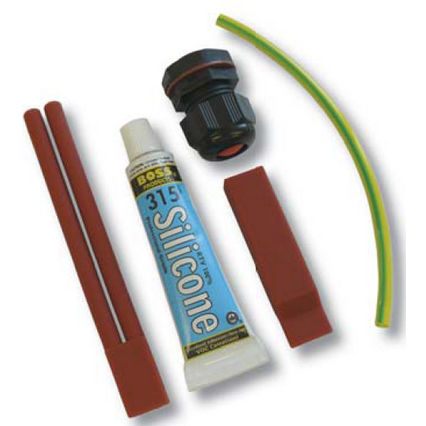

The connection technology includes easy-to-configuration connection and termination connections in a set. The structure is selected such that the connection can be made directly in a housing approved for Ex areas, e.g. connection housing from the QXEx series or controllers from the IRMBEx series. Additional connecting cables are no longer necessary. In addition, the high temperature stability up to 200°C also allows use with high temperature heating conductors, such as the ILH and ILS series. Compact dimensions Temperature stability up to 200°C Quick and easy to assemble For various heating systems Self-configuration set: Type HBR-IAL4SS Temperature class - T3 Connection/termination material - Silicone Length connecting sleeve - 125 mm Length of termination sleeve - 66 mm For following heating tapes - HBR-ILLw ... ILS ... ILH Self-configuration set - Type HBR-IAL4SS
